CNC Control Board Set – up to 6 axes
Compatible with Mach3/Mach4 via USB or Ethernet. Made in Europe.
This complete set of control boards is designed to precisely drive your CNC machines, from 2 to 6 axes. Suitable for both stepper-controlled machines and Servo Closed Loop systems.

⚙️ Made in Europe – except for the 4-channel relay board (origin: China).

🧠 Why choose this set?
Engineered for reliability and smooth CNC control.

Highly modular and expandable.

Modern, clear, and stable interface.

€995.00
Tax included
Licence
Cartes Axes 125Khz
Quantity

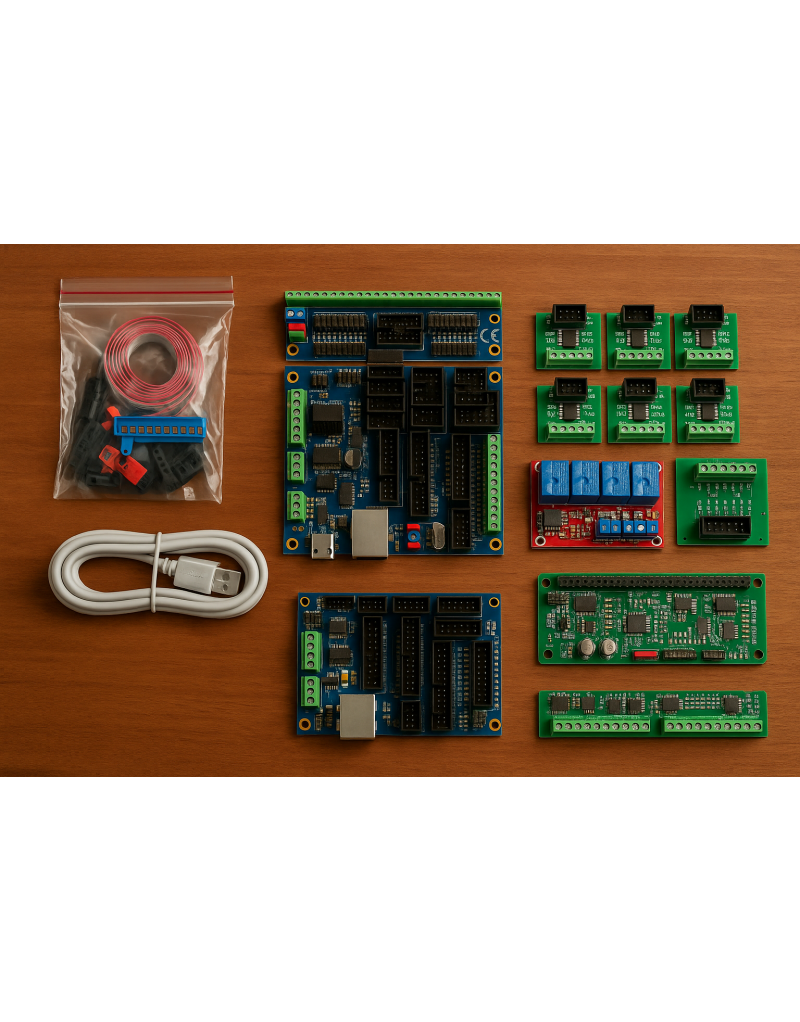

📦 Complete Set Contents
✅ Main board XCard+

🛠️ 5 hours of online technical support

🧾 Mach3 or Mach4 license of your choice (option to purchase without license)

🔧 3 to 5 axis control boards at 125 kHz (more on request – custom quote)

⚡ 1 four-relay board (note: the main board already includes 2 relays + 2 opto-coupled outputs)

📤 1 additional 10-output board

📥 1 opto-isolated board for 12 inputs (limit switches, probe, home, etc.)

🔌 1 pack of cables and connectors

🔁 1 PNP/NPN gateway board for compatibility with mixed sensors

The controller supports NPN or PNP signals but does not handle mixing well. The included gateway allows up to 5 non-compliant inputs to be managed without replacing your sensors.


🧠 Advanced Features

  • USB 1.1/2.0 HID & Ethernet 10/100 Mbps connection (DHCP or fixed IP)

  • Control of up to 8 stepper or servo axes (125 kHz)

  • 5 high-speed PWM outputs (2 isolated)

  • Isolated 0–10 V analog output for spindle

  • 28 configurable digital I/O (up to 256 via ModBus)

  • 5 filtered 12-bit analog inputs + DAC converter

  • Integrated web interface: dashboard, I/O, macros, graphical programming

  • USB joystick/keyboard simulation up to 6 axes + 32 buttons

  • Expansions via XExtBus/XNET (sensors, relays, displays, CNC keyboard, etc.)

  • Built-in safety: E-Stop, fail-safe, redundant communication

  • Extensive software compatibility: Mach3, Mach4, DLL .NET/ActiveX, open API, C/Linux/Mac support


⚙️ Technical Specifications

Item Detail
Power Supply 12–26 V DC, ≥ 2.5 W
Interfaces USB 1.1/2.0 HID, Ethernet 10/100
Digital I/O 28 + 4 dedicated outputs
Analog I/O 5 × 12-bit inputs + 1 isolated 0–10 V output
PWM 5 high-frequency outputs (2 isolated)
Encoders/Counters Multiple inputs, 1 ultra-fast, counters
Dimensions approx. 110 × 105 mm, weight 120 g
Temperature 0–60 °C (operating)
Compatible OS Windows, Linux, Mac OS (utilities included)

🧩 Available Options (Contact us for a quote)
⌨️ Dedicated CNC keyboard
📺 LCD displays via native ModBus
🕹️ Additional axis handwheels
